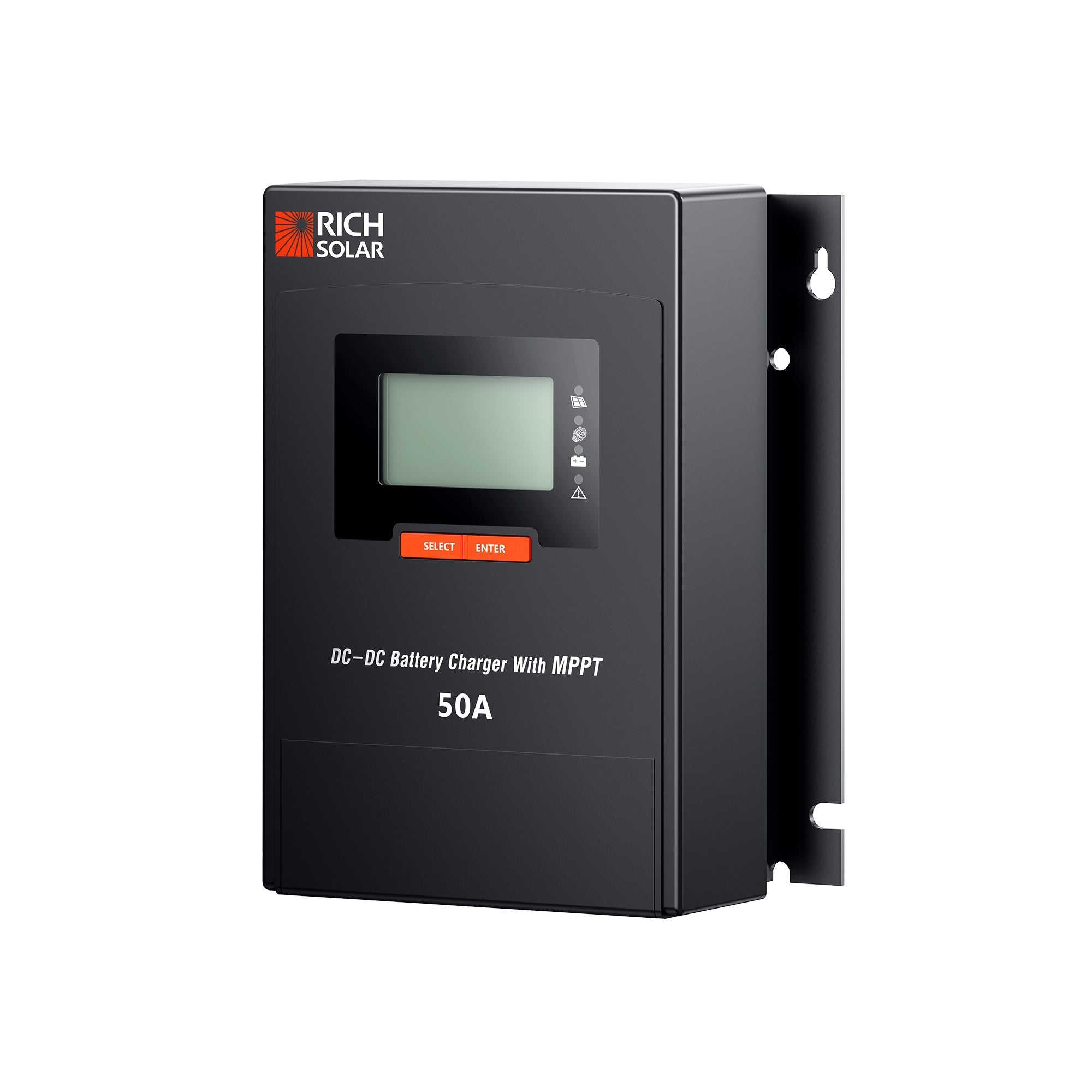

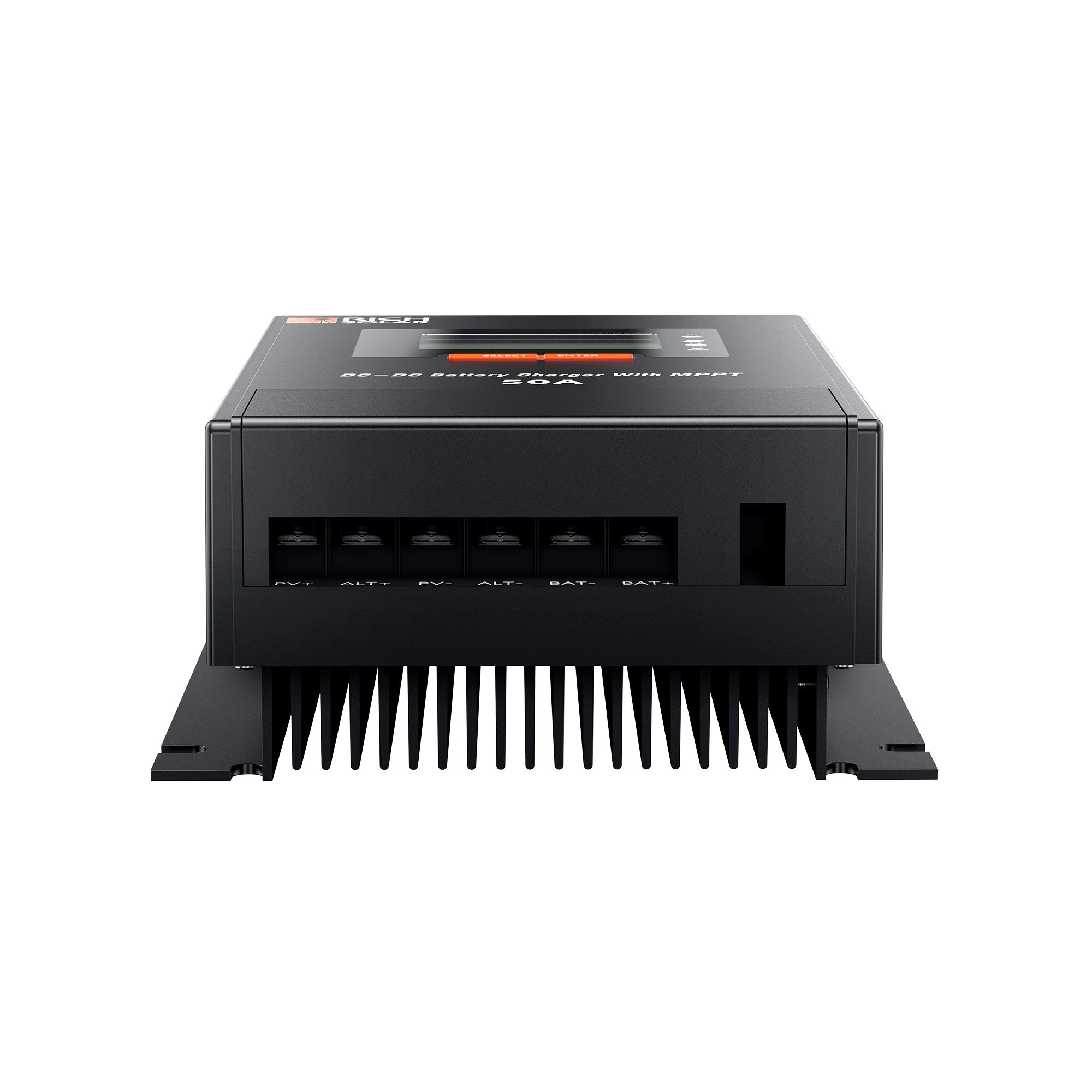

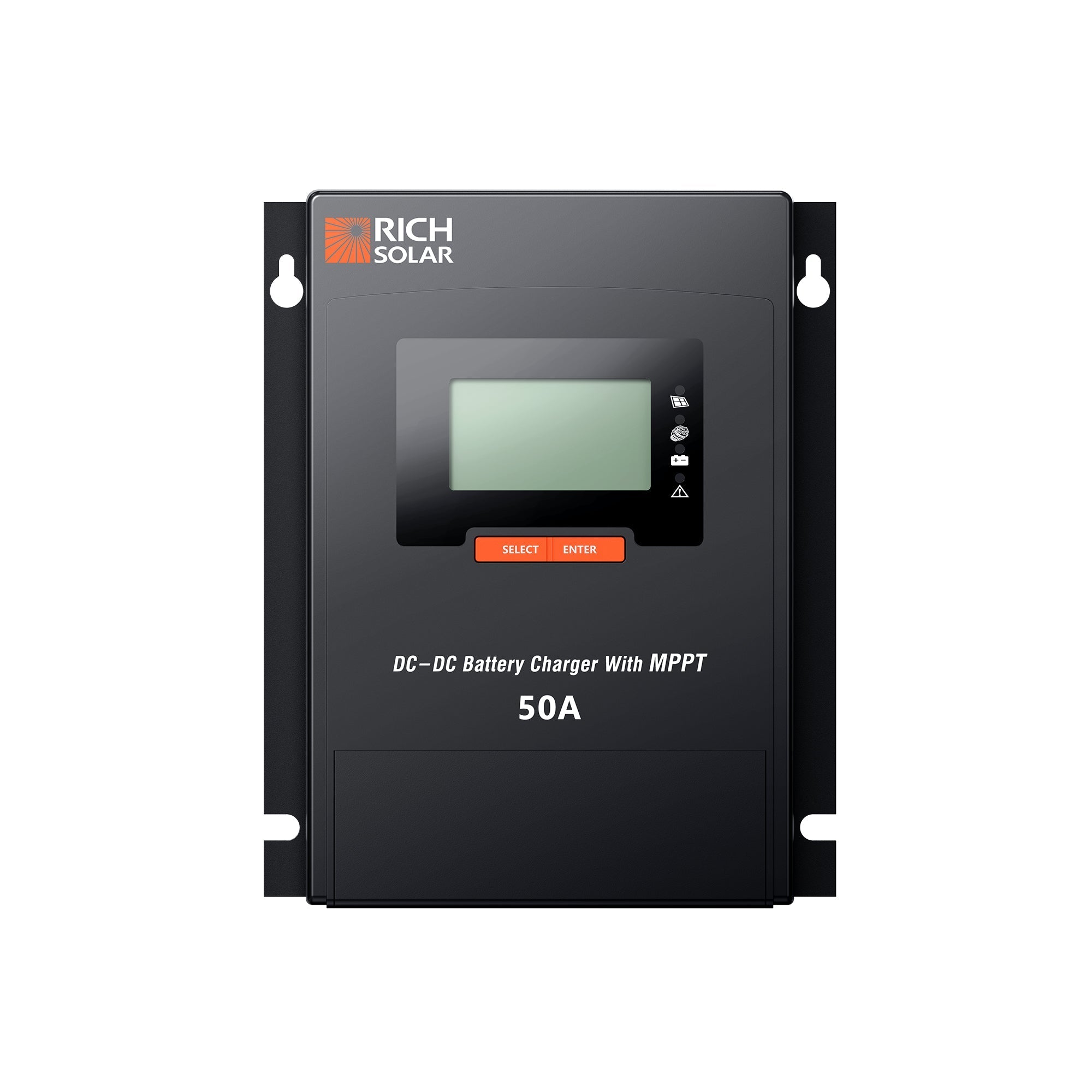

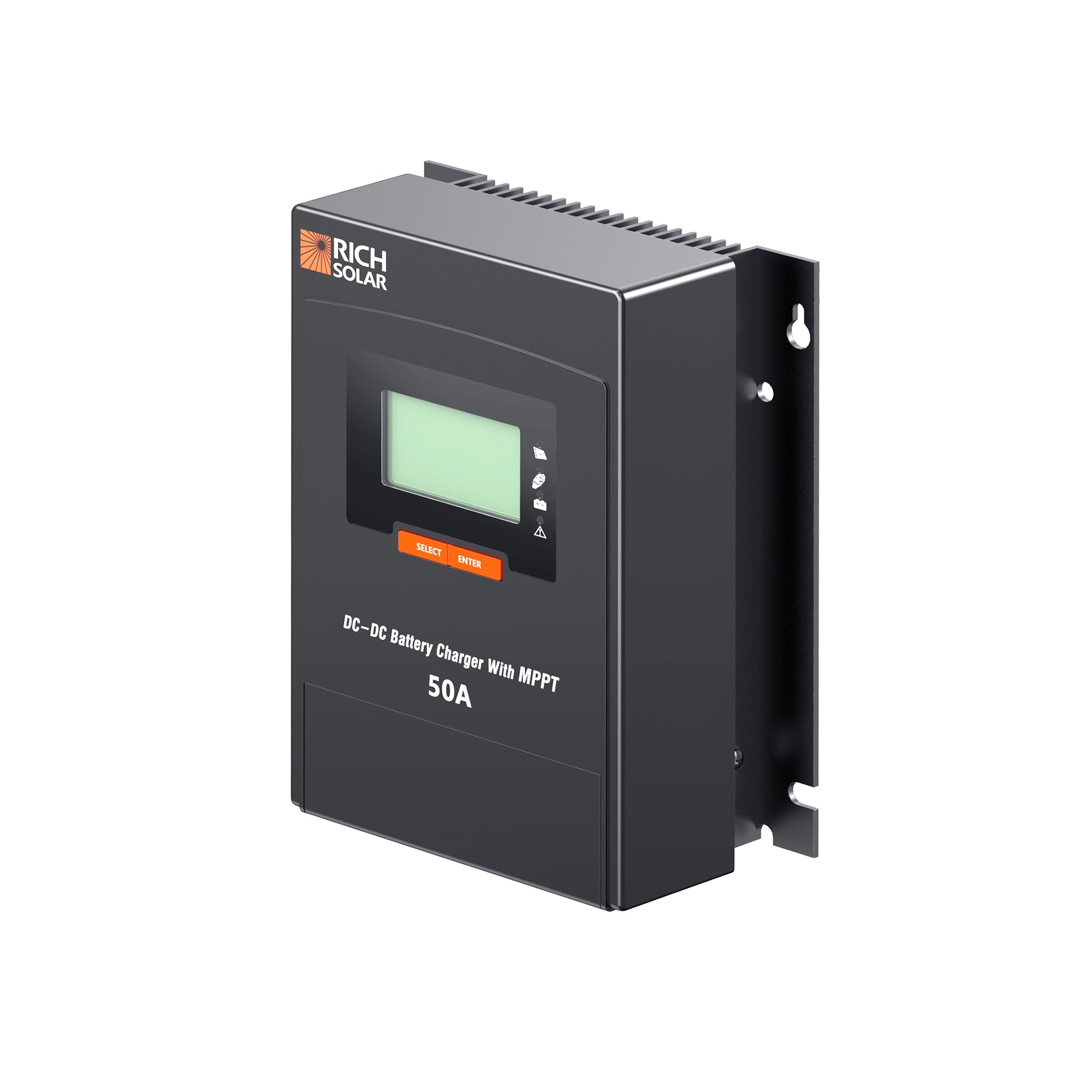

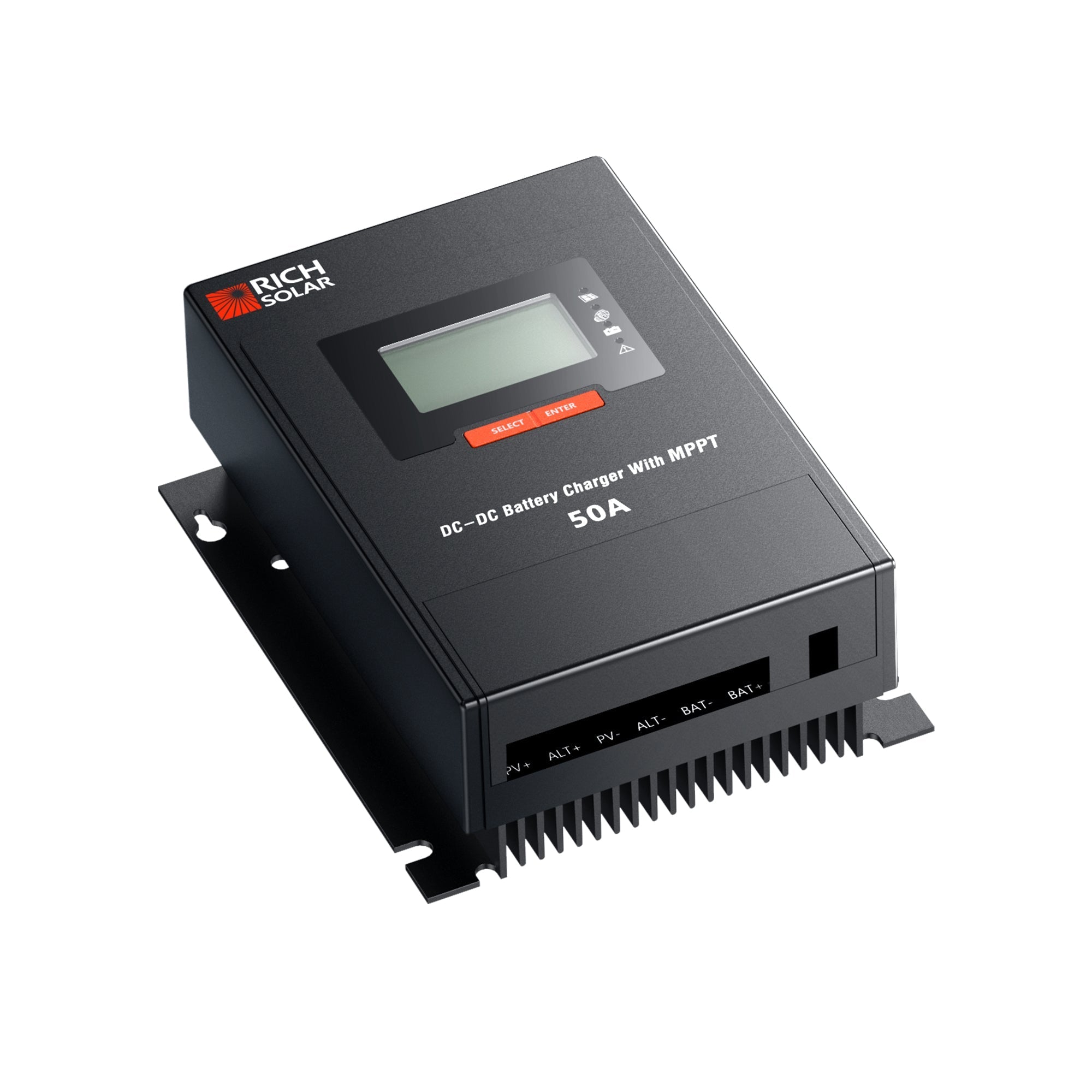

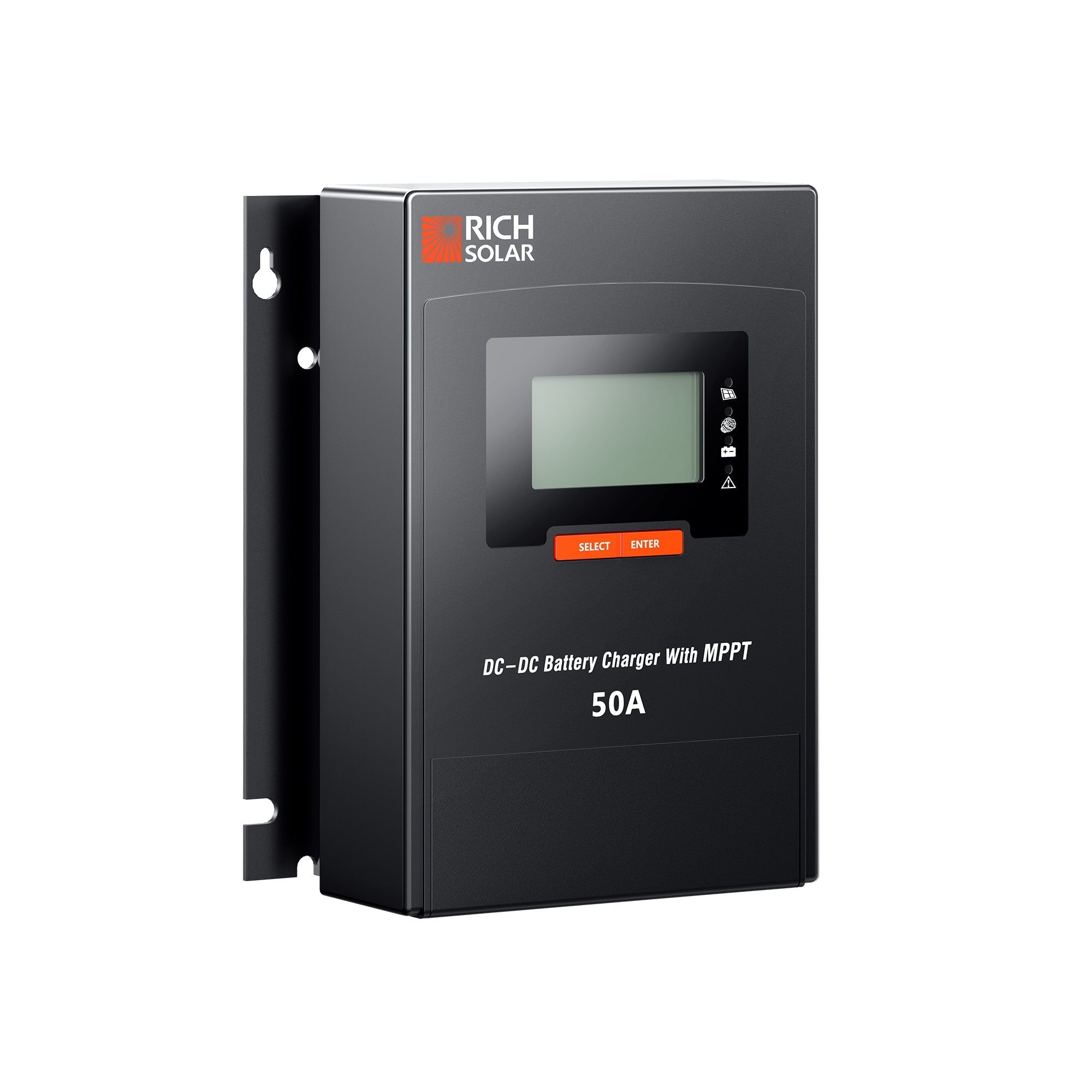

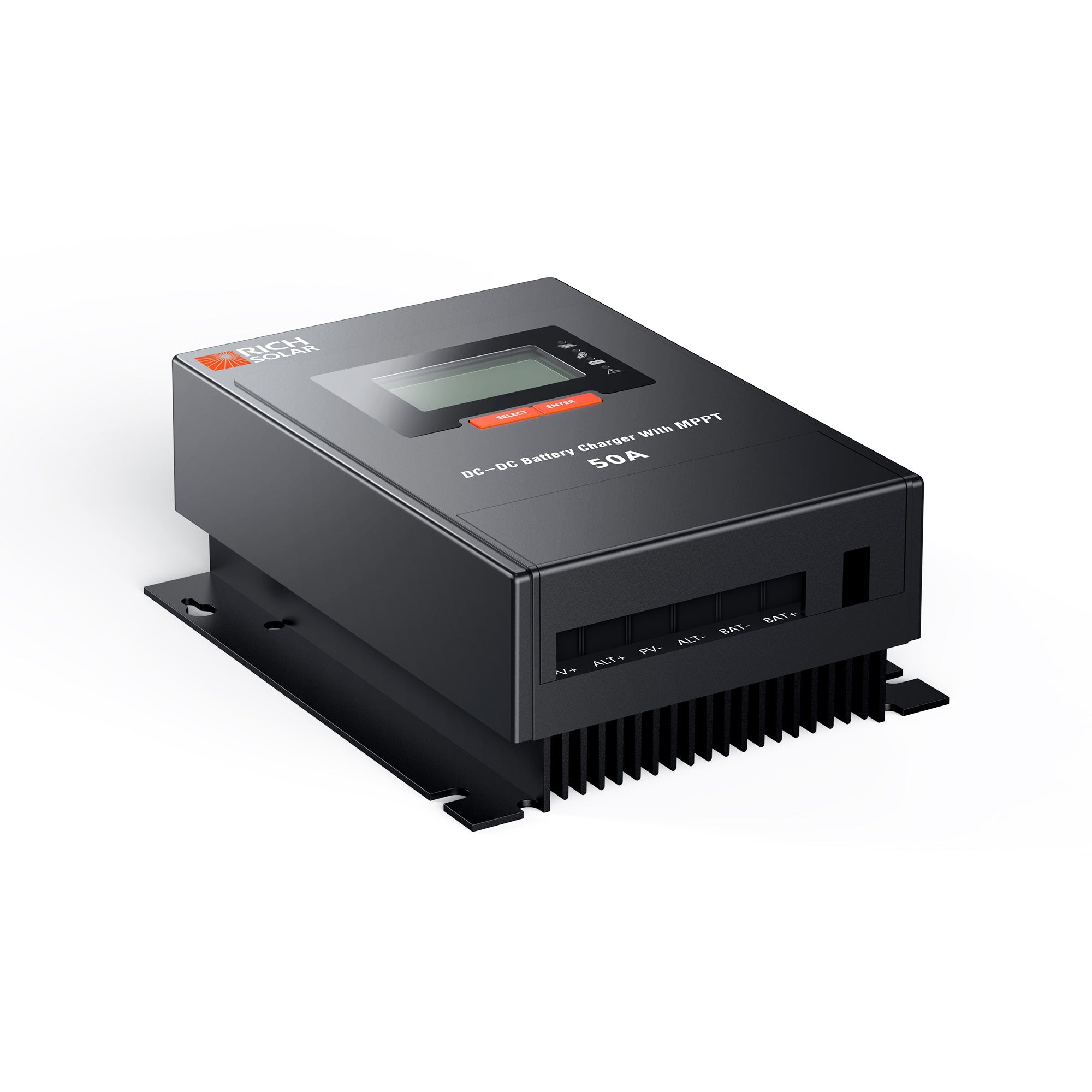

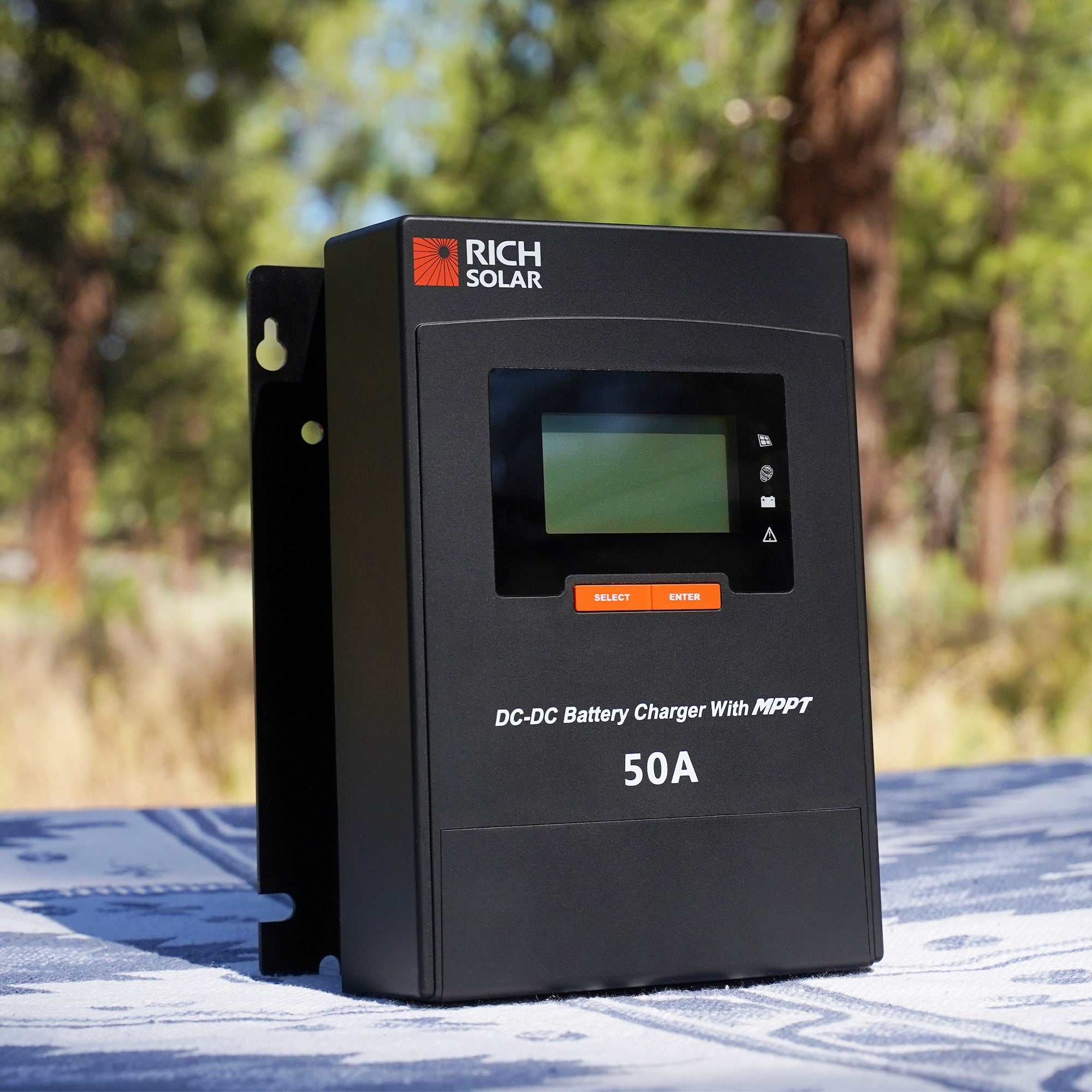

Rich Solar 50 Amp DC to DC Lithium Battery Alternator Charger with MPPT

Rich Solar 50 Amp DC to DC Lithium Battery Alternator Charger with MPPT

Efficient Off-Grid Power: The Rich Solar 50 Amp DC to DC Lithium Battery Alternator Charger with MPPT is a top-tier charging solution designed to efficiently charge lithium batteries from your vehicle's alternator. Perfect for those who need reliable power while off-grid, this charger uses advanced Maximum Power Point Tracking (MPPT) technology to maximize charging efficiency, ensuring you get the most power possible from your alternator to your battery.

Key Features:

• Dual Charging Capabilities: Can connect to both PV (solar) and alternator sources, offering flexible power options.
• Efficient Charging: Charges both leisure and starter batteries, making it ideal for RVs, boats, and other off-grid vehicles.
• High Efficiency MPPT: Features MPPT technology with up to 99.9% tracking efficiency for optimal power conversion.
• Communication Support: Supports TTL communication for remote monitoring and control.

Technical Specifications:

PV Input:

• Max. Voltage of Open Circuit: 55Vdc
• MPPT Voltage Range: 17-36Vdc
• Max PV Input Current: 45A
• Max PV Input Power: 800W

Battery Compatibility:

• Li-ion / Lead Acid / User Defined:

  • Rated Battery Voltage: 12Vdc
  • Battery Voltage Range: 9-17Vdc
  • Max MPPT Charging Current: 50A
  • Max Alternator Charging Current: 60A
  • MPPT Charging Mode: Buck

• Lead Acid:

  • Max MPPT Charging Voltage: 13.8V
  • Max MPPT Charging Current: ≤25A
  • Max Alternator Input Voltage (Conventional): 13.2-16Vdc
  • Max Alternator Input Voltage (Euro 6 Standard): 12-16Vdc
  • Alternator Charging Mode: Buck, Boost, Buck-Boost

Efficiency:

• MPPT Tracking Efficiency: >99%
• Max Charging Conversion Efficiency: 98%

Communication:

• Embedded Interfaces: TTL, Remote Switch

General Specifications:

• Weight: 4.7 lbs
• Dimensions: 8.7 x 6.9 x 3.2 inches
• Protection Degree: IP32
• Operating Temperature Range: -35°C~65°C (-31℉~149℉)

Certifications:

• Safety: IEC62109
• EMS: IEC61000, FCC sDoC
• RoHS Compliant: Yes

Reliable and Versatile: Whether you're outfitting an RV, boat, or any off-grid system, the Rich Solar 50 Amp DC to DC Lithium Battery Alternator Charger with MPPT is the ideal choice for efficient, reliable power. With its advanced features and robust build, you can trust it to keep your batteries charged and ready for your next adventure.
